How does a forklift Side-Shift & Fork Positioner work?

Update time : 2025-08-05 15:56:50

Ever struggled to perfectly align forks with a pallet, especially in tight spaces? Or wasted time manually adjusting fork spacing for different-sized loads? Forklift side-shifters and fork positioners are game-changing attachments designed to solve these exact problems, drastically improving efficiency and safety. While their names sound similar, they serve distinct purposes. Let's dive into how each one works and where they shine.

Understanding the Forklift Side-Shifter: Precision Lateral Movement

Core Function: A side-shifter allows the operator to move the entire fork carriage (and the load on it) left or right (laterally) without moving the truck itself.

How it Works:

Hydraulic Power: The side-shifter is integrated into the fork carriage assembly and connected to the forklift's hydraulic system.

Sliding Mechanism: When the operator activates the dedicated side-shift control lever (usually on the dashboard or a multifunction handle), hydraulic fluid flows into a cylinder(s) within the attachment.

Lateral Movement: The hydraulic pressure pushes a piston, which moves a sliding frame or carriage that the forks are mounted to.

Controlled Shift: This action smoothly slides the forks and any load sideways, typically within a range of 2 to 6 inches (50mm to 150mm) in each direction from center.

Key Application Benefits:

Perfect Pallet Alignment: Effortlessly center forks under a pallet, even if the initial approach isn't perfect.

Tight Space Maneuvering: Position loads accurately next to racks, walls, or other obstacles without repositioning the entire forklift.

Damage Prevention: Reduce the risk of damaging racks, products, or the forklift by enabling fine adjustments.

Faster Load Handling: Significantly speeds up load pickup and placement cycles.

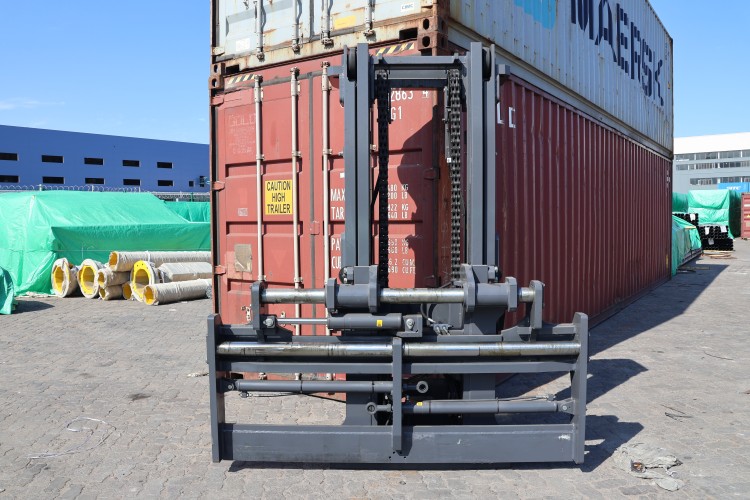

Understanding the Fork Positioner (Fork Spreader): Adjusting Fork Spacing

Core Function: A fork positioner allows the operator to increase or decrease the distance (spacing) between the two forks hydraulically.

How it Works:

Hydraulic Power & Mechanism: Similar to the side-shifter, it uses the forklift's hydraulics. However, the mechanism differs.

Moving Carriages: Each fork is mounted on an individual sliding carriage.

Synchronized Movement: Activating the fork positioner control (often the same lever as side-shift, but a different direction or button) sends hydraulic pressure to a mechanism (like a hydraulic motor driving chains or a central cylinder with linkages).

Adjusting Width: This mechanism forces the fork carriages to move in opposite directions simultaneously – either spreading the forks apart or bringing them closer together. The range can vary significantly, often from around 16 inches (400mm) up to 48 inches (1200mm) or more.

Key Application Benefits:

Handling Multiple Pallet Sizes: Instantly adapt to different pallet widths without leaving the cab or manual labor.

Non-Palletized Loads: Securely handle drums, rolls, crates, or oddly shaped objects by setting the forks precisely to the load's support points.

Eliminating Manual Adjustment: Saves tremendous time and physical effort compared to manually sliding forks.

Improved Stability: Ensures forks are optimally spaced for the load's center of gravity.

Custom Solutions for Your Unique Challenges

At HITOP, we understand that every operation has unique demands. Standard side-shifters and fork positioners are powerful, but sometimes you need more.

We specialize in customizing these essential attachments:

Enhanced Load Capacities: Require attachments rated for heavier or specialized loads? We build for strength.

Specialized Mounting: Integration with unique mast types or other attachments? We design compatible solutions.

Duty Cycle & Environment: Building robust attachments for high-intensity use or harsh conditions (cold storage, corrosive environments).

Integration with Other Attachments: Designing side-shifters/positioners to work seamlessly with clamps, rotators, or other specialized tools.

Contact HITOP today for a consultation and discover how custom attachments can transform your operation! Get a quote and maximize your forklift's versatility.
